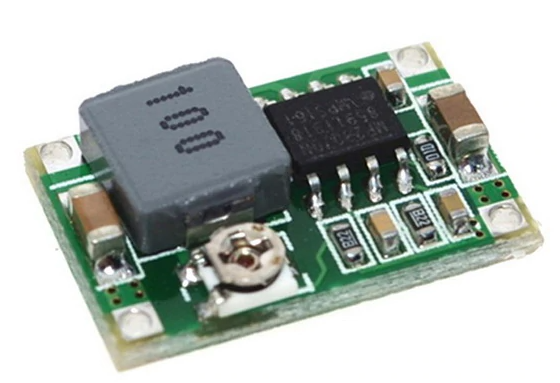

MINI360 3A MINI DC-DC STEP DOWN CONVERTER VOLT REGULATOR 5V-23V TO 3. 6V 9V 12V

2.62€
Qty:

Size: 17*11*3.8mm
Color: multicolor
Material: electronic components
Input voltage: 4.75V-23V
Output voltage: 1V-17V
Output current: 3A peak,  1.8A for long time
Transfer efficiency: 96% (MAX.)
Switching freqnency: 340KHz
Output ripple: 30mV (no-load)
Load regulation: ±0.5%
Voltage  regulation: ±2.5%
Working temperature: -40~85℃

Package list:
1/5/10 x DC -DC power supply module

Features:
< Efficiency: Up to 96% (depends on the difference between input and output voltage) This module uses synchronous rectification, efficient power conversion available.
< Good performance: Use integrally molded power inductor and synchronous rectifier control chip, small and efficient
< Wide application: Great for LED lights, micro-controllers, battery chargers, and most other low power devices.
< Compact and lightweight: It is compact and portable, high efficiency.

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.

  • Availability: 1
