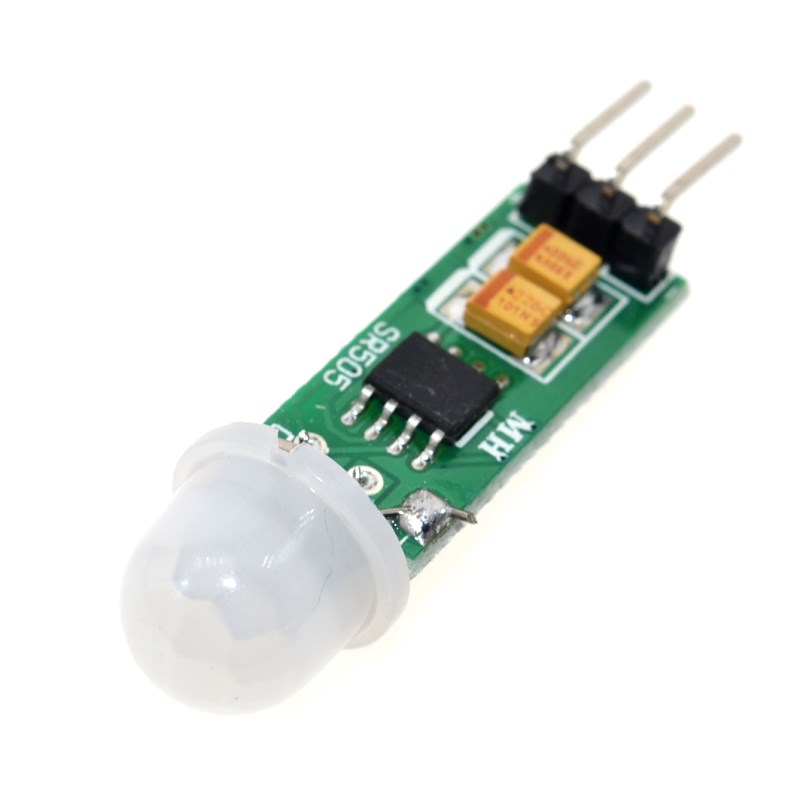

HC-SR505 Mini PIR motion sensing module for arduino body sensing mode mini-body sensor switch NEW

4.46€
Qty:

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.

Features

  • Automatic Control
  • Minimum size
  • Repeatable Trigger
  • Wide range of operating voltage
  • Low-power
  • Output high signal

Specification

  • Operating voltage range: DC4.5-20V
  • Quiescent Current: <60uA
  • Trigger: reusable trigger (default)
  • Delay Time: The default 8S + -30%
  • Board Dimensions: 10 * 23mm
  • Induction angle: <100 degrees cone angle
  • Sensing distance: 3 meters
  • Working temperature: -20 to +80 degrees
  • Sensor Lens Dimensions: Diameter: 10mm
  • Availability: -1
