Smart Electronics Five road tracing module tracing sensor tracking module 5 functions to send routines TCRT5000

9.28€
Qty:
Print

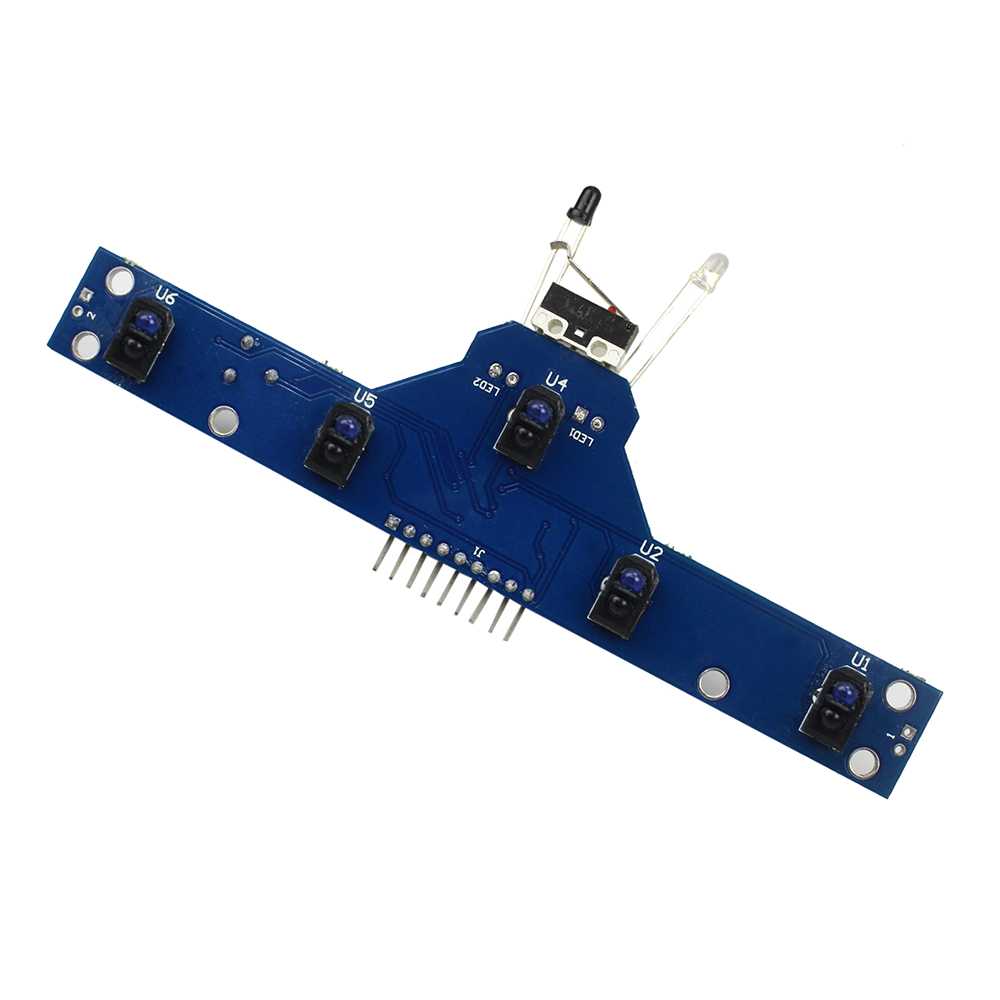

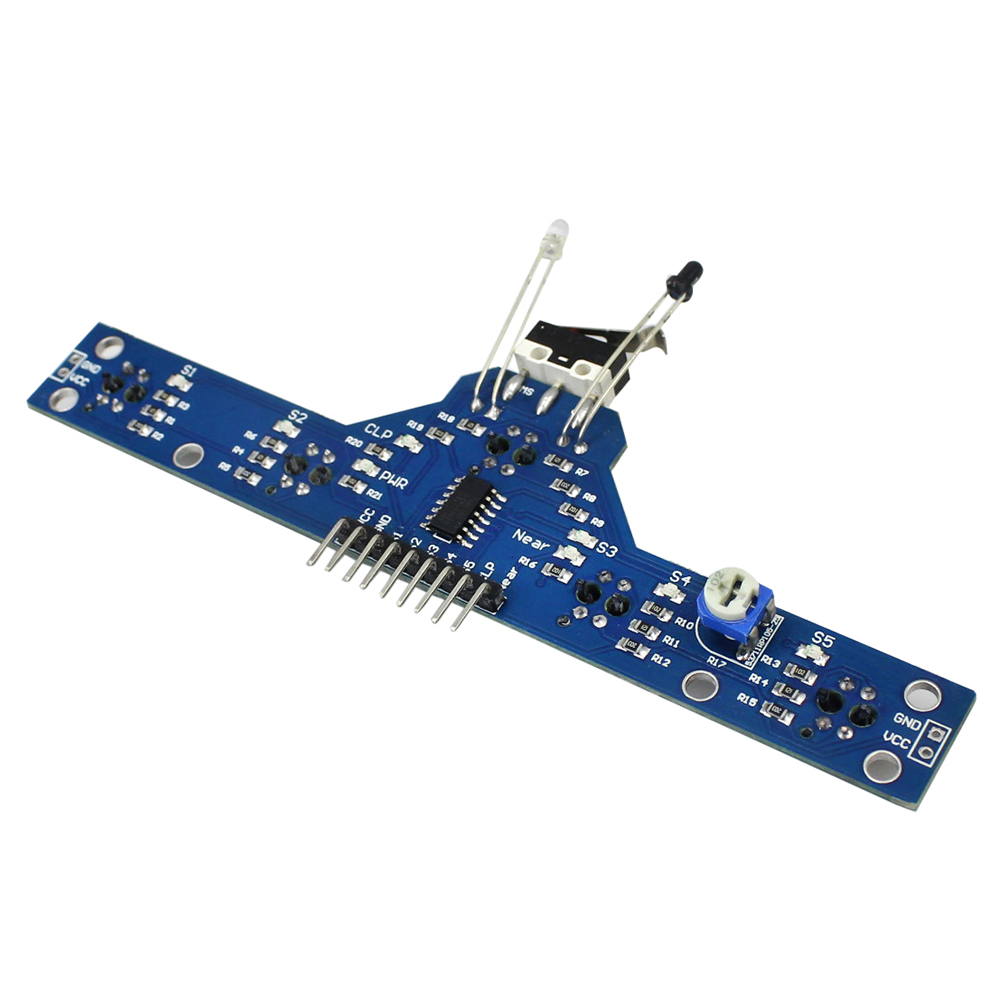

5 Channel Tracking Sensor Module Board Trace Module Infrared Detection

Description:

BFD-1000 is a high cost the NewWay cordial electronics for the majority want the production tracking robot friends, versatile tracking module, this module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor touch detection sensor, the robot makes your design more able to adapt to the situation.

BFD-1000 specifically designed to be used as a black (white) line retrieval, particularly suited to the complexity of black and white line, cross black and white line detection, it is a 6 channel high sensitivity infrared sensor (5 channel line patrol a road unblinded) accurate identification of the black-and-white line.

Specification:

Detection distance: 0 - 4cm(black and white line sensors), 0 - 5cm(adjustable distance detection)
Input voltage: 3.0V - 5.5V
Output form: digital output (high and low level)

Feature:

BFD - 1000 integrated 5 channel high sensitivity tracking sensor for environmental impact, able to accurately track complex black line (white line) for a simple black line line tracking more at ease.
BFD - 1000 integrated infrared sensor barrier unblinded and distance can be adjusted by sliding rheostat.
BFD - 1000 has a special touch sensor design, making robot's design is more simple.
BFD - 1000 output signals are all digital signal (high and low level), easily connected with the microcontroller.
BFD - 1000 sensor output state has LED lights as an indicator for easy debugging.
BFD - 1000 supports a voltage of 3.0-5.5v, meet most system's requirements.
Using the high sensitivity of the sensor, the tracking can be in the range of 0.5mm-40mm between arbitrarily changed without to make any adjustments.

Package included:

1 x Tracing sensor module
