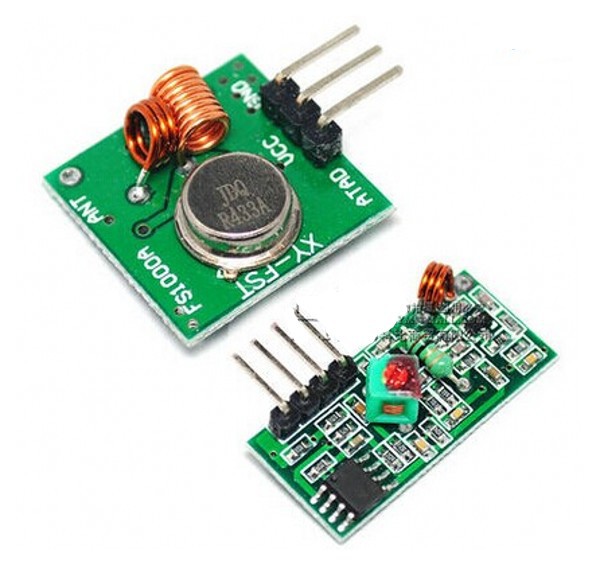

RF wireless receiver module & transmitter module board for arduino super regeneration 315/433MHZ set

4.76€
Qty:

Receiver module parameters

Product Model: XY-MK-5V

Operating voltage : DC5V                quiescent current: 4MA

Receiving frequency: 433.92MHZ

Receiver sensitivity: - 105DB

Size : 30 * 14 * 7mm   external antenna: 32CM single core wire wound into a spiral

Technical parameters of the transmitter head

Product Model: XY-FS

Launch distance: 20 -200 meters (different voltage, different results)    Operating voltage: 3.5-12V     Dimensions: 19 * 19mm

Ways of working: AM                transfer rate: 4KB / S          transmit power: 10mW

Transmitting frequency: 433M

An external antenna: 25cm ordinary multi-core or single-core line

Pinout from left → right: ( DATA ; VCC ; GND )

  • Availability: In Stock
